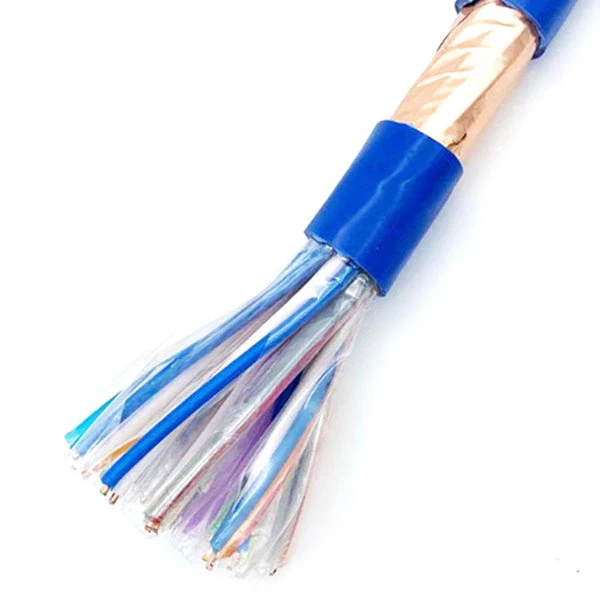

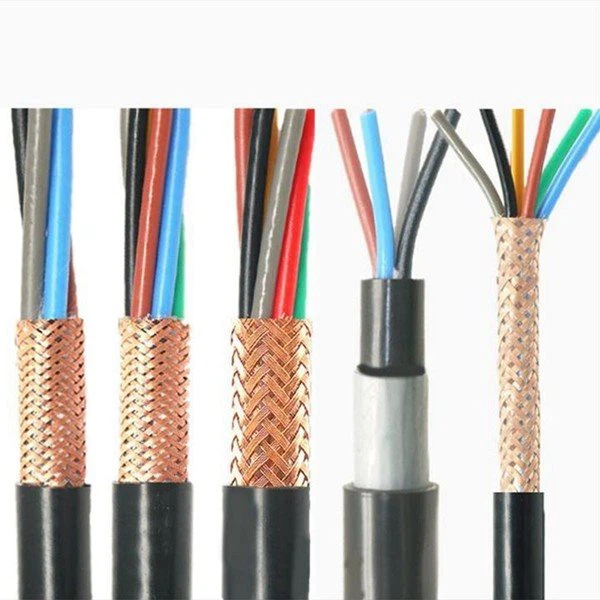

Qauv ntawm Copper daim kab xev Shielded Control Cable:
Tus neeg xyuas pib: 99.99% OFC tooj liab
Rwb thaiv tsev: PVC / Rohs Reach PVC (ib puag ncig tus phooj ywg khoom)
Screen / Shielded: Copper daim ntaub thaiv npog
Sheath: PVC / Rohs Reach PVC (ib puag ncig tus phooj ywg khoom) / nplaim hluav taws kub PVC
Daim ntawv thov:
Copper daim kab xev Shielded tswj cables muab cov ntaub ntawv tsis muaj kev cuam tshuam thiab cov teeb liab kis tau tus mob thiab ntau dua electromagnetic tiv thaiv los ntawm hluav taws xob drives thiab zaus converters.
Daim ntawv pov thawj: 60227 IEC 74, 60228 IEC
Type: KWV
Specification rau Copper Daim kab xev Shielded Control Cable:
Tus naj npawb ntawm cov cores | Nominal cross-sectional cheeb tsam |
2C~60C | 0.5mm² ~ 2.5mm² |
2C~7C | 4mm² ~ 16mm² |
2C~5C | Los ntawm 25 mm² |
Kub muag specification: 0.5mm, 0.75mm, 1.5mm, 2.5mm, 4mm, 6mm
Cov ntaub ntawv qhia txog tooj liab daim kab xev tiv thaiv Cable:
Rated Voltage: U0 / U=300/500V, 450/750V, 600/1000V
Kev ntsuas hluav taws xob: 2000V, 2500V, 3500V
Qhov kub thiab txias: -40 ℃ ~ +70 ℃ (taw), -50 ℃ ~ 70 ℃ (flexing)
Min Bending Radius: 6 × 0 (taw), 20 × 0 (flexing)
Core Identification: Xim Coded, Number coded
Tus neeg xyuas pib Stranding: IEC 60228 C1.5
Feature:
1. Txuj raws li IEC 60227-7
2. nplaim retardant, Roj resistant, Torsion resistant
3. Cov tshuaj tiv thaiv zoo
4. Cov teeb liab cuam tshuam
5. XLPE rwb thaiv tsev yog muaj
Peb lub Hoobkas tsim cov cable saib:
