Daim ntawv thov:

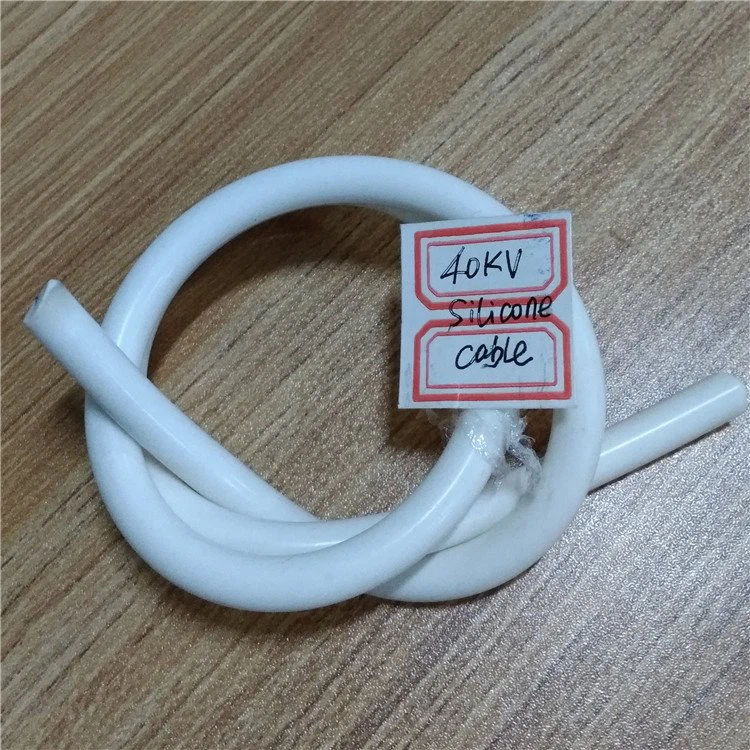

High voltage silicone xaim cable yog tsuas yog siv nyob rau hauv high voltage hluav taws xob txee, hwj chim systems, high voltage electric motor, TV receivers, transformer, high voltage test khoom, sab hauv kev sib txuas ntawm cov khoom siv hluav taws xob.
Main technical parameters rau high voltage silicone xaim:
1.Nominal Voltage: 3KV, 5KV, 6KV, 10KV, 20KV, 30KVDC, 40KVDC, 50KVDC
2.Temperature Range: -60ºC txog 200ºC
3.Conductor: Tinned tooj liab
4.Insulation: Silicone roj hmab
5.O, D, Nyiaj: ± 0.10mm6. Xim: Dub, Xim av, Liab, Ntsuab, Dawb, Xiav, Grey, Pob tshab- daj / ntsuab thiab lwm yam
Kub muag xim: Liab, dub, Dawb
Specification:
10kV silicone xaim: 0.2mm, 0.35mm, 0.50mm, 0.75mm, 1.0mm, 1.5mm, 2.0mm, 2.5mm, 4.0mm, 6.0mm, 10mm2
AWG14 AWG16 AWG18 gauge yog ib txwm thiab kub export specification.
Ntawm no sau cov ntaub ntawv rau cov tsis muaj ntaub thaiv npog silicone hlau, peb tuaj yeem tsim cov ntaub thaiv npog siab voltage silicone hlau xws li tinned tooj liab hlau braid shield.
High voltage silicone xaim cable tau raug xa tawm mus rau:
Holland, Fabkis, Hungary, Australia, Argentina, Mexico, South Africa, USA, Nyab Laj
Ntim:
100meter ib yob, ces nrog thawv tiv thaiv thiab pallet, packingway kuj tuaj yeem kho raws li tus neeg siv khoom xav tau.
Cov ntaub ntawv qhia txog kev pom nyob rau nplooj ntawv tom ntej
Tus coj | Rwb thaiv tsev | Hluav taws xob yam ntxwv | |||||||||||
3 KV | 6 kvu | 10 KV | 20 KV | 50 kV | |||||||||
AWG | Tus neeg xyuas pib siv No. *mm | Dia. | Rwb thaiv tsev Thick mm | OD mm | Rwb thaiv tsev Thick mm | OD mm | Rwb thaiv tsev Thick mm | OD | Rwb thaiv tsev Thick mm | OD mm | Rwb thaiv tsev Thick mm | OD mm | DC Tawm tsam. max 20 ° C ohm / km |
mm | mm | ||||||||||||
28 | 7*0.12 | 0.37 | 0.5 | 1.37 | 0.7 | 1.77 | 1 | 2.37 | 1.3 | 2.97 | 2.5 | 5.37 | 237.25 |
26 | 7*0.15 | 0.49 | 0.5 | 1.49 | 0.7 | 1.89 | 1 | 2.49 | 1.3 | 3.09 | 2.5 | 5.49 | 148.94 |
24 | 7*0.20 | 0.6 | 0.5 | 1.6 | 0.7 | 2 | 1 | 2.6 | 1.3 | 3.2 | 2.5 | 5.6 | 93.25 |
22 | 7*0.25 | 0.76 | 0.5 | 1.76 | 0.7 | 2.14 | 1 | 2.76 | 1.3 | 3.36 | 2.5 | 5.76 | 56.8 |
20 | 7*0.30 | 0.91 | 0.5 | 1.91 | 0.7 | 2.31 | 1 | 2.91 | 1.3 | 3.51 | 2.5 | 5.91 | 40.1 |
18 | 7*0.40 | 1.17 | 0.5 | 2.17 | 0.7 | 2.57 | 1 | 3.17 | 1.3 | 3.77 | 2.5 | 6.17 | 23 |
16 | 7*0.50 | 1.5 | 0.5 | 2.5 | 0.7 | 2.9 | 1 | 3.5 | 1.3 | 4.1 | 2.5 | 6.5 | 14.6 |
14 | 43*0.25 | 1.83 | 0.6 | 3.03 | 0.8 | 3.43 | 1.2 | 4.23 | 1.5 | 4.83 | 3 | 7.83 | 9.9 |
