1.cov khoom piav qhia
Nominal Voltage: 3KV / 6KV / 10KV / 20KV / 30KV / 40KV / 50KV Cov Lus Qhia
Qhov kub thiab txias: -60ºC txog 150/200ºC
Conductor: Tinned tooj liab
Insulator: silicone roj hmab
ODTolerance: ± 0.1 hli
Xim: Dawb-Blue-Red-Dub-xim av-daj
Kev tsim kho: Cov hlau tsis sib haum yog qhov txhab ntawm lub iav fiber ntau hlau raws li cov tub ntxhais hlau (kauv), thiab txheej txheej txheej yog npog nrog cov roj hmab silicon. 1. Nws muaj kev tiv thaiv kub zoo heev. Nws tuaj yeem siv tau ntev ntawm 100 ºC yam tsis muaj kev hloov pauv. Nws tuaj yeem siv rau 10000 teev ntawm 160 ºC. 2. Nws muaj cov rwb thaiv tsev zoo, cov rwb thaiv tsev tiv thaiv yog ntau tshaj 500m Ω, qhov kev tiv thaiv tus nqi yog ruaj khov nyob rau hauv ntau yam kub thiab zaus, thiab nws muaj kev tiv thaiv zoo rau high voltage corona paug thiab arc paug. 3. Nws muaj qhov ua tau zoo txias thiab zoo rationalization hauv kev kho mob.
2.cov ntaub ntawv khoom
| SPEC. | Ib txwm cheeb tsam mm2 ua |
Tus coj Qauv mm |
Min rwb thaiv tsev tsis kam ntawm 700C Mohm.km |
Thickness ntawm rwb thaiv tsev mm |
Thickness ntawm sheath mm |
Kwv yees tag nrho txoj kab uas hla mm |
|
| 300/500V | RVV | 3×6.0 | 84×0.30 | 0.006 | 0.8 | 1.2 | 12.4 |
| 227 IEC 53 (RVV) | 4×1.0 | 32×0.20 | 0.010 | 0.6 | 0.9 | 7.9 | |
| 227 IEC 53 (RVV) | 4×1.5 | 48×0.20 | 0.010 | 0.7 | 1.0 | 9.3 | |
| 227 IEC 53 (RVV) | 4×2.5 | 77×0.20 | 0.009 | 0.8 | 1.1 | 11.0 | |
| RVV | 4×4.0 | 56×0.30 | 0.007 | 0.8 | 1.2 | 12.2 | |
| RVV | 4×6.0 | 84×0.30 | 0.006 | 0.8 | 1.3 | 13.8 | |
| RVV | 4×10.0 | 34×0.40 | 0.0056 | 1.0 | 1.3 | 18.6 | |
| RVV | 4×16.0 | 126×0.40 | 0.0046 | 1.0 | 1.4 | 21.4 | |
| 227 IEC 53 (RVV) | 5×1.5 | 48×0.20 | 0.010 | 0.7 | 1.1 | 10.3 | |
| 227 IEC 53 (RVV) | 5×2.5 | 77×0.20 | 0.009 | 0.8 | 1.2 | 12.2 | |
| RVV | 5×4.0 | 56×0.30 | 0.007 | 0.8 | 1.2 | 13.4 | |
| RVV | 5×6.0 | 84×0.30 | 0.006 | 0.8 | 1.3 | 15.2 | |
| RVV | 5×10.0 | 84×0.40 | 0.0056 | 1.0 | 1.3 | 20.5 | |
| RVV | 5×16.0 | 126×0.40 | 0.0046 | 1.0 | 1.4 | 23.7 |

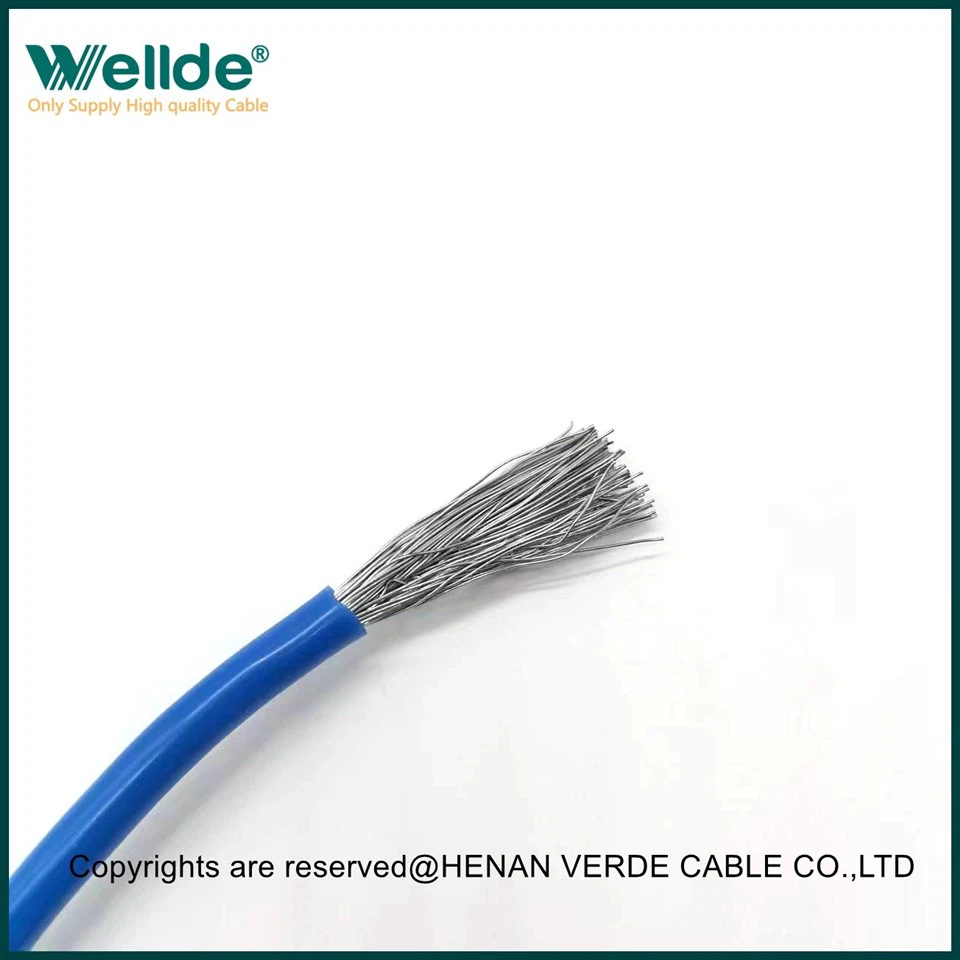

3. khoom duab
4.FAQ
Q1: Kuv puas tuaj yeem tau txais cov qauv dawb?
A1: Peb tuaj yeem muab cov khoom uas twb muaj lawm coj mus kuaj dawb hauv freight sau. Yog tias muaj qee qhov kev xav tau tshwj xeeb, thov hu rau peb kom paub meej ntxiv.
Q2: Koj txoj kev ntim khoom yog dab tsi? Kuv puas tuaj yeem muaj lub pob customized?
A2: Peb muaj cov txheej txheem export pob. Yog xav paub ntxiv txog lub pob customized, thov hu rau peb.
Q3: Koj puas yog lub Hoobkas lossis tuam txhab lag luam?
A3: Peb yog lub Hoobkas. Peb muab txhua yam OEM / ODM kev pabcuam rau cov neeg siv khoom thoob ntiaj teb.
