1.Product piav qhia ntawm silicone cable
Nyob rau hauv lub ntiaj teb niaj hnub no uas cov cuab yeej technology tau nce mus rau qhov nrawm nrawm, qhov xav tau ntawm cov kab hluav taws xob ua haujlwm siab uas tuaj yeem tiv taus qhov kub thiab txias, muab kev yooj yim thiab tiv taus cua sov thiab nplaim taws yog qhov tseem ceeb tshaj plaws. Qhov no yog qhov uas silicone cables tuaj rau hauv kev ua si. Silicone cables yog tsim los ua kom tau raws li qhov yuav tsum tau ua ua ntej ntawm kev lag luam niaj hnub no.
Silicone cables paub txog lawv qhov kub thiab txias uas ua rau lawv siv tau rau hauv ntau qhov chaw uas yuav tsum tau ua kom sov siab heev. Cov cables no tuaj yeem tiv taus qhov kub txog li 200 degree thiab tuaj yeem ua haujlwm hauv qhov kub thiab txias li -60 degree . Lawv tau txais txiaj ntsig tshwj xeeb nyob rau hauv qhov chaw kub kub uas cov qauv PVC lossis roj hmab cables yuav yaj lossis ua nkig.
Lwm qhov tseem ceeb ntawm silicone cables yog lawv qhov yooj. Vim lawv cov qauv tshwj xeeb, silicone cables yog qhov zoo kawg nkaus malleable uas ua rau lawv zoo meej rau kev siv hauv cov ntawv thov uas yuav tsum tau nruj bending radiuses. Tsis tas li ntawd, lawv qhov yooj yim ua rau lawv siv tau rau hauv qhov chaw kaw lossis nyuaj mus cuag.
Thaum tshav kub kub kuj yog ib qho tseem ceeb nam ntawm silicone cables. Cov cables no yog tsim los tiv thaiv cov teebmeem ntawm tshav kub thiab tsis txhob ua nkig thaum raug kub, tsis zoo li PVC lossis roj hmab cables uas tuaj yeem yooj yim degrade. Thaum tshav kub kub tsis kam tso cai rau cov khoom siv silicone kom ua tau zoo txawm tias qhov ntev ntawm cov cua sov tuaj yeem cuam tshuam rau lwm yam khoom.
Thaum kawg, silicone cables yog cov nplaim hluav taws kub heev. Lawv muaj peev xwm tua tus kheej tom qab raug hluav taws kub hnyiab, uas yog qhov tseem ceeb tshwj xeeb rau kev nyab xeeb hauv qhov chaw muaj kev pheej hmoo siab. Cov nplaim hluav taws kub nyhiab ntawm cov khoom siv silicone ua kom lawv tsis txhob cuam tshuam rau kev sib kis ntawm hluav taws, muab cov txheej txheem ntxiv ntawm kev nyab xeeb.
Nyob rau hauv xaus, silicone cables yog ntau yam, high-kev ua tau zoo cables uas yog tsim los tiv taus huab cua kub, muaj kev yooj yim, thiab tiv taus tshav kub thiab nplaim taws. Lawv cov khoom ua rau lawv zoo tagnrho rau siv ntau yam kev siv xws li kev lag luam tshuab, tsheb, thiab cov chaw muaj kev pheej hmoo siab uas kev nyab xeeb yog qhov tseem ceeb. Tseeb, thaum nws los txog rau nrhiav tau ib tug txhim khu kev qha cable uas yuav ua tau nyob rau hauv lub toughest tej yam kev mob, silicone cables yog lub zoo meej tov.
2.cov ntaub ntawv ntawm silicone cable
|
Nominal Section (mm²) |
Nominal Stranding (mm) |
Core Structure No./Dia. (mm) |
Nominal rwb thaiv tsev Thickness (mm) |
Nominal Sheath Thickness (mm) |
Max. OD (mm) |
Siv hnyav (kg/km) |
|
1×1.5 |
30/0.25 |
1.58 |
1.14 |
0.82 |
5.4 |
52 |
|
1×2.5 |
50/0.25 |
2.04 |
1.14 |
0.82 |
5.8 |
67 |
|
1×4.0 |
56/0.30 |
2.59 |
1.14 |
0.82 |
6.4 |
87 |
|
1×6.0 |
84/0.30 |
3.17 |
1.14 |
0.82 |
7.0 |
113 |
|
1×10 |
78/0.40 |
4.07 |
1.52 |
0.82 |
8.6 |
178 |
|
1×16 |
128/0.40 |
5.22 |
1.52 |
0.82 |
9.8 |
254 |
|
1×25 |
199/0.40 |
6.51 |
1.52 |
0.82 |
11.1 |
363 |
|
1×35 |
279/0.40 |
7.71 |
1.52 |
0.82 |
12.3 |
473 |
3.product video ntawm silicone cable

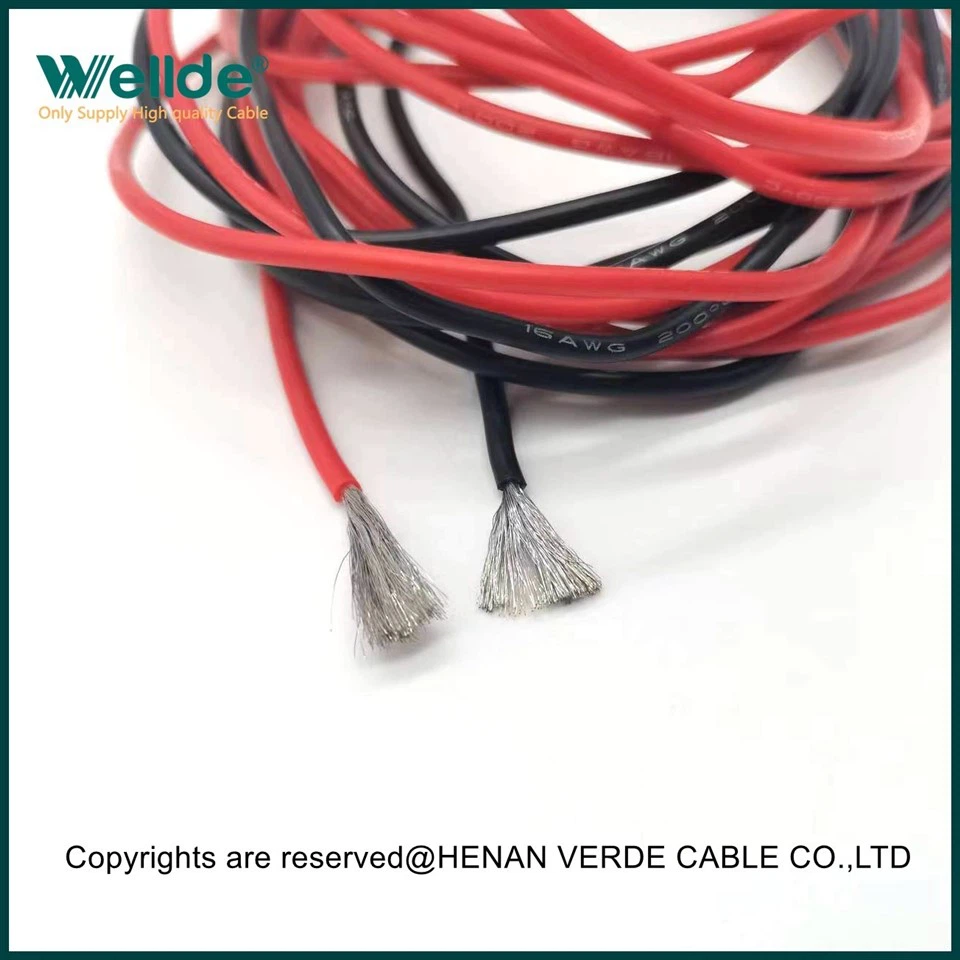

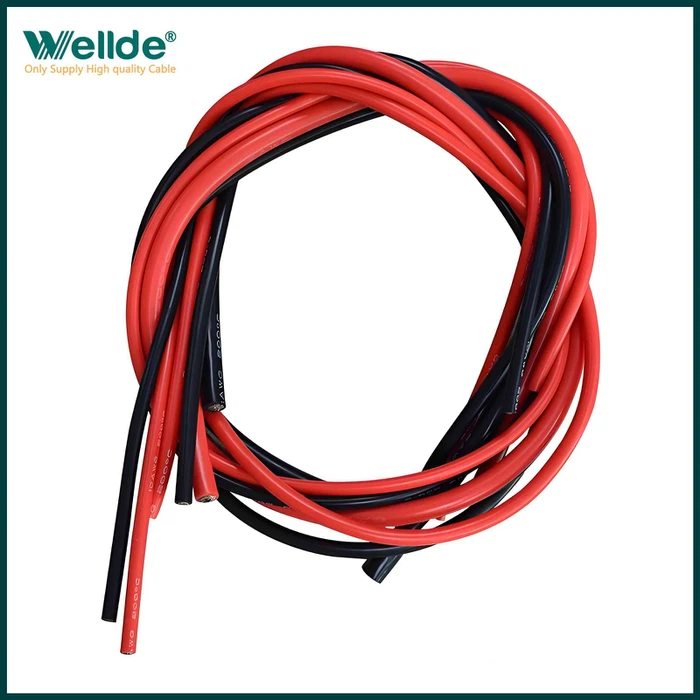

4.product dluab ntawm silicone cable
5.FAQ
Q1: Kuv puas tuaj yeem tau txais cov qauv dawb?
A1: Peb tuaj yeem muab cov khoom uas twb muaj lawm coj mus kuaj dawb hauv cov khoom thauj. Yog tias muaj qee qhov kev xav tau tshwj xeeb, thov hu rau peb kom paub meej ntxiv.
Q2: Koj txoj kev ntim khoom yog dab tsi? Kuv puas tuaj yeem muaj lub pob customized?
A2: Peb muaj cov txheej txheem export pob. Yog xav paub ntxiv txog lub pob customized, thov hu rau peb.
Q3: Koj puas yog lub Hoobkas lossis tuam txhab lag luam?
A3: Peb yog lub Hoobkas. Peb muab txhua yam OEM / ODM kev pabcuam rau cov neeg siv khoom thoob ntiaj teb.
