1.cov khoom piav qhia
3 core 4core 5 core kauv cable
Cov ntaub ntawv: (unit: mm)
L (kauv ntev ntawm cov mos txwv): 800 ± 5
L1 (tail rau kauv): 200 ± 10
L2 (tail rau kauv): 200 ± 10
D (sab nraud txoj kab uas hla ntawm lub caij nplooj ntoos hlav): 17 ± 1
Caij nplooj ntoos hlav hlau qauv: Oxygen-dawb tooj liab hlau
Cov khoom siv rwb thaiv tsev: PE
Kauv cable tub ntxhais naj npawb: 4 cores × 0.2mm
Cov yam ntxwv ua haujlwm
1.Sheathed ua haujlwm ib puag ncig: -50 degree ~ +90 degree
2. Muaj qhov hluav taws xob: 10KV
3.Strength of extension Ntau dua los yog sib npaug N/mm2:10
4.Elongation ntawm kev tawg Loj dua lossis sib npaug rau %: 500
2.cov ntaub ntawv khoom
| Cov khoom kuaj | Cov ntaub ntawv xeem | Kev xeem tau |
| Cov khoom siv conductor | Oxygen-dawb tooj liab hlau | Oxygen-dawb tooj liab hlau |
| Conductor txoj kab uas hla | 0. 15 hli | 0. 15 hli |
| Tus naj npawb ntawm cov conductors | 12 | 12 |
| Conductor dc kuj | 20 degree Tsawg dua lossis sib npaug 6.6 Ω / km | 20 degree Tsawg dua lossis sib npaug 6.6 Ω / km |
| Cov khoom siv insulating | PE | PE |
| Rwb thaiv tsev sab nraud txoj kab uas hla | {{0}}.96±0. 1 hli | 0.96.,097,0.98 |
| Tus naj npawb ntawm cov cores | 4 cev | 4 cev |
| Sab nraud txoj kab uas hla ntawm sheath | 4.5 ± 0. 1 hli | 4.5,4.4,4.4, |
| Sheath khoom | PU dawb gloss | PU dawb gloss |
| Sheathed ua haujlwm ib puag ncig | -50 degree ~ +90 degree | -50 degree ~ +90 degree |
| Nrog voltage | 10 KV | 10 KV |
| Lub zog ntawm qhov txuas ntxiv Ntau dua lossis sib npaug N / mm2 | 10 | 10 |
| Elongation ntawm kev tawg Loj dua lossis sib npaug rau % | 500 | 500 |
| Ua haujlwm ntev | 800 ± 5 hli | 805,801,803 |
| Sab nraud txoj kab uas hla ntawm lub caij nplooj ntoos hlav D: | 17 ± 1 hli | 17.25, 17.36, 16.95 |
| Lub cev L1L2: | 200 ± 10 hli (平行) | 206,203,208 |

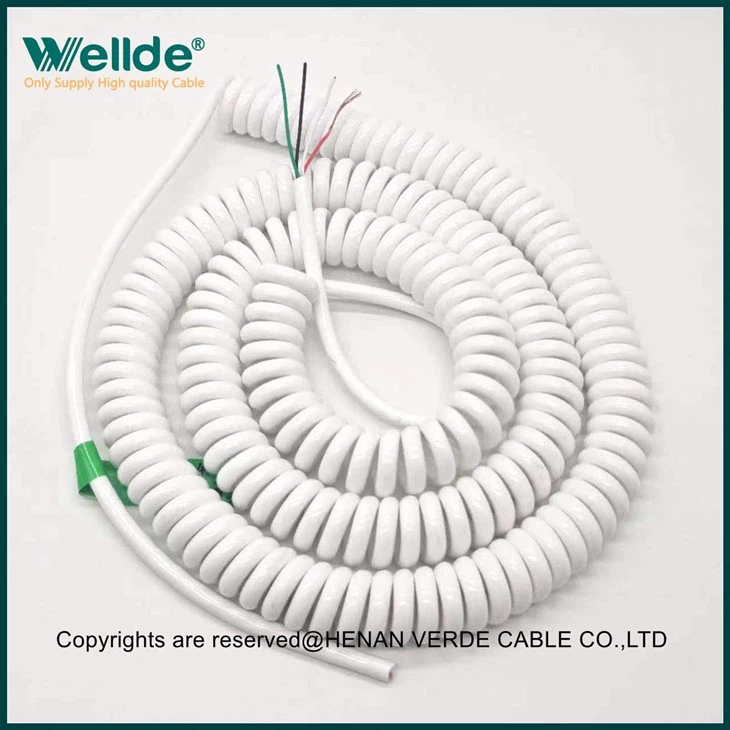

3. khoom duab
4.FAQ
Q1: Kuv puas tuaj yeem tau txais cov qauv dawb?
A1: Peb tuaj yeem muab cov khoom uas twb muaj lawm coj mus kuaj dawb hauv cov khoom thauj. Yog tias muaj qee qhov kev xav tau tshwj xeeb, thov hu rau peb kom paub meej ntxiv.
Q2: Koj txoj kev ntim khoom yog dab tsi? Kuv puas tuaj yeem muaj lub pob customized?
A2: Peb muaj cov txheej txheem export pob. Yog xav paub ntxiv txog lub pob customized, thov hu rau peb.
Q3: Koj puas yog lub Hoobkas lossis tuam txhab lag luam?
A3: Peb yog lub Hoobkas. Peb muab txhua yam OEM / ODM kev pabcuam rau cov neeg siv khoom thoob ntiaj teb.
