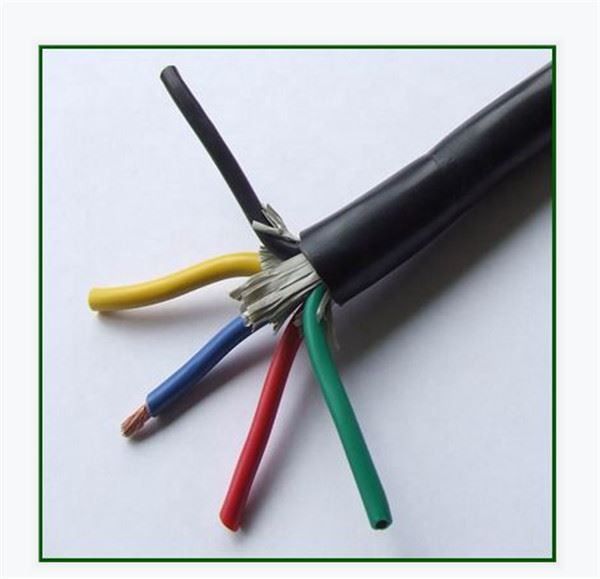

Txheem ntawm 5 Core PVC Insulated Cable
GB / T12706, IEC60502, ntau tus qauv xws li DIN VDE, AS / NZS lossis hom tshwj xeeb tuaj yeem kho raws li tus neeg siv khoom xav tau.
Specifications rau 5 Core PVC Insulated Cable:
6mm2,10mm, .16mm...25mm. 35mm..50mm.95mm..150mm...300mm2
AWG size: AWG1, AWG2, AWG1/0 AWG 2/0, AWG 3/0 .......more AWG size cables can be customized.
Core No | 3+2 core | 4+1 core | 5 cev |
Thaj chaw | 2.5 ~ 300mm2 | 4 ~ 300 hli 2 | 2.5 ~ 95mm2 |
Hom piav qhia& Daim ntawv thov sijhawm ntawm cable
Hom | Kev piav qhia | Qhov chaw thov | |
Cu Core | Al Core | ||
VV | VLV | PVC rwb thaiv tsev PVC sheath fais fab cable | Yuav tsum tau muab tso rau hauv tsev, hauv qhov av, cable furrow lossis yeeb nkab, cable tuaj yeem' tsis dais txhua yam quab yuam sab nraud |
HWV 22 | VLV 22 | PVC rwb thaiv tsev, steel daim kab xev armor, PVC sheath fais fab cable | Yuav tsum tau muab tso rau hauv av, lub cable tuaj yeem dais qee yam quab yuam, |
HWV 62 | HWV 62 | PVC rwb thaiv tsev, tsis muaj cov hlau nplaum steel daim kab xev armor, PVC sheath fais fab cable. | |
HWV 32 | LWV 32 | PVC rwb thaiv tsev, nyias hlau-hlau armor, PVC sheath fais fab cable | Yuav siv tau rau lub qhov dej, hauv qab dej nrog hauv qab hiav txwv, cov kaus poom cable dais lub siab loj nrog cov hlau lead kom rub lub dint. |
HWV 72 | lwv 72 | PVC rwb thaiv tsev, tsis muaj cov hlau nplaum tuab hlau-hlau armor, PVC sheath fais fab cable | |
HWV 42 | LWV 42 | PVC rwb thaiv tsev, tuab hlau-hlau armor, PVC sheath fais fab cable | |
Cov Lus Qhia Tshwj Xeeb: | 1. Cov tub ntxhais ib leeg nrog cov khoom siv hlau nplaum sib nqus tsis haum rau siv rau AC fais fab mov rov qab, Nws yuav tsum xaiv cov khoom siv tsis sib nqus xws li ib leeg-core 62 lossis 72 Hom cable. 2. Tsis tso cai rau ib xees hla cov hlau nplaum piping kev sib koom ua ke thaum ib leeg-ntxhais cable tsim, txhawm rau tiv thaiv qhov tshwm sim hauv qhovntsej thiaj tsis mob cable thauj hluav taws xob tam sim no. | ||
Cov ntaub ntawv qhia txog 5 Core PVC Insulated Cable:
0.6 / 1kV 3+2 Core PVC insulated PVC sheathed Fais fab cable
Nominal cheeb tsam mm2 ua | Tsis armored | Steel daim kab xev armored | Hlau hlau armored | ||||||
Reference Diameter mm | Kwv yees qhov hnyav kg/km | Reference Diameter mm | Kwv yees qhov hnyav kg/km | Reference Diameter mm | Kwv yees qhov hnyav kg/km | ||||
VV | VLV | HWV 22 | VLV 22 | HWV 32 | LWV 32 | ||||
3*4+2*1.5 | 14.3 | 324 | 218 | 17.5 | 508 | 401 | / | / | / |
3*6+2*4 | 16.1 | 440 | 277 | 19.3 | 646 | 482 | / | / | / |
3*10+2*6 | 18.7 | 635 | 370 | 21.9 | 873 | 607 | / | / | / |
3*16+2*10 | 21.8 | 926 | 499 | 25.0 | 1203 | 775 | / | / | / |
3*25+2*16 | 23.3 | 1333 | 664 | 26.1 | 1585 | 916 | 30.8 | 2459 | 1791 |
3*35+2*16 | 24.7 | 1635 | 784 | 27.7 | 1914 | 1063 | 32.7 | 2710 | 1855 |
3*50+2*25 | 28.3 | 2255 | 1063 | 32.5 | 2924 | 1732 | 36.3 | 3952 | 2704 |
3*70+2*35 | 32.0 | 3135 | 1407 | 36.2 | 3883 | 2155 | 39.8 | 4933 | 3186 |
3*95+2*50 | 36.7 | 4217 | 1866 | 41.1 | 5092 | 2742 | 44.0 | 6223 | 3821 |
3*120+2*70 | 40.7 | 5417 | 2329 | 44.9 | 6360 | 3272 | 50.1 | 8240 | 5994 |
3*150+2*70 | 43.7 | 6303 | 2694 | 47.9 | 7314 | 3705 | 53.1 | 9382 | 5700 |
3*185+2*95 | 49.2 | 8024 | 3413 | 53.4 | 9161 | 4549 | 58.4 | 11327 | 6678 |
3*240+2*120 | 55.0 | 10314 | 4315 | 59.2 | 11580 | 5581 | 64.0 | 13850 | 7860 |
3*300+2*150 | 60.8 | 12817 | 5322 | 65.0 | 14212 | 6717 | 69.9 | 16710 | 9223 |
0.6 / 1kV 4C+1E Core Hom PVC insulated PVC sheathed Fais fab cable
Nominal cheeb tsam mm2 ua | Tsis armored | Steel daim kab xev armored | Hlau hlau armored | ||||||
Reference Diameter mm | Kwv yees qhov hnyav kg/km | Reference Diameter mm | Kwv yees qhov hnyav kg/km | Reference Diameter mm | Kwv yees li Qhov hnyav kg/km | ||||
VV | VLV | HWV 22 | VLV 22 | HWV 32 | LWV 32 | ||||
4*4+1*2.5 | 14.8 | 348 | 232 | 18.0 | 537 | 421 | / | / | / |
4*6+1*4 | 16.4 | 465 | 289 | 19.6 | 673 | 496 | / | / | / |
4*10+1*6 | 19.4 | 686 | 396 | 22.6 | 932 | 641 | / | / | / |
4*16+1*10 | 22.4 | 992 | 528 | 25.5 | 1275 | 809 | / | / | / |
4*25+1*16 | 23.5 | 1362 | 638 | 26.1 | 1609 | 885 | 30.1 | 2513 | 1789 |
4*35+116 | 25.1 | 1751 | 777 | 27.7 | 2009 | 1035 | 31.9 | 2970 | 1997 |
4*50+1*25 | 29.5 | 2473 | 1069 | 33.5 | 3104 | 1700 | 37.5 | 4244 | 2840 |
4*70+1*35 | 32.9 | 3367 | 1402 | 37.1 | 4083 | 2117 | 40.9 | 5322 | 3357 |
4*95+1*50 | 37.3 | 4512 | 1829 | 41.3 | 5301 | 2618 | 46.8 | 7266 | 4583 |
4*120+1*70 | 41.2 | 5709 | 2277 | 45.2 | 6578 | 3146 | 50.7 | 8747 | 5316 |
4*150+1*70 | 45.1 | 6921 | 2740 | 49.1 | 7871 | 3690 | 54.8 | 10264 | 6084 |
4*185+1*95 | 49.8 | 8592 | 3382 | 53.8 | 9637 | 4427 | 60.3 | 12340 | 7215 |
4*240+1*120 | 56.2 | 11018 | 4279 | 60.2 | 12193 | 5454 | 66.3 | 15140 | 8401 |
4*300+1*150 | 62.1 | 13681 | 5257 | 66.1 | 14976 | 6552 | 72.4 | 18266 | 9843 |
600/1000V 5Core PVC Insulated PVC sheath Fais fab cable
Nominal cheeb tsam mm2 ua | Tsis armored | Steel daim kab xev-armored | Hlau hlau armored | ||||||
Reference Diameter mm | Kwv yees qhov hnyav kg/km | Reference Diameter mm | Kwv yees qhov hnyav kg/km | Reference Diameter mm | Kwv yees qhov hnyav kg/km | ||||
VV | VLV | HWV 22 | VLV 22 | HWV 32 | LWV 32 | ||||
5*2.5 | 13.4 | 266 | / | 17.0 | 423 | / | / | / | / |
5*4 | 14.6 | 386 | 260 | 18.3 | 570 | 446 | / | / | / |
5*6 | 16.0 | 505 | 316 | 19.7 | 704 | 517 | / | / | / |
5*10 | 19.1 | 760 | 433 | 23.5 | 999 | 684 | 27.0 | 1700 | 1390 |
5*16 | 22.6 | 1090 | 588 | 26.0 | 1357 | 858 | 30.0 | 2316 | 1820 |
5*25 | 27.4 | 1598 | 818 | 31.0 | 2183 | 1390 | 35.0 | 2848 | 2073 |
5*35 | 30.5 | 2134 | 1049 | 34.5 | 2764 | 1664 | 38.2 | 3648 | 2563 |
5*50 | 35.2 | 2848 | 1382 | 39.6 | 2932 | 1741 | 41.5 | 4682 | 3132 |
5*70 | 39.8 | 3980 | 1823 | 44.3 | 3930 | 2177 | 47.8 | 5917 | 3747 |
5*95 | 45.6 | 5386 | 2447 | 50.0 | 5163 | 2337 | 55.0 | 7843 | 4898 |
