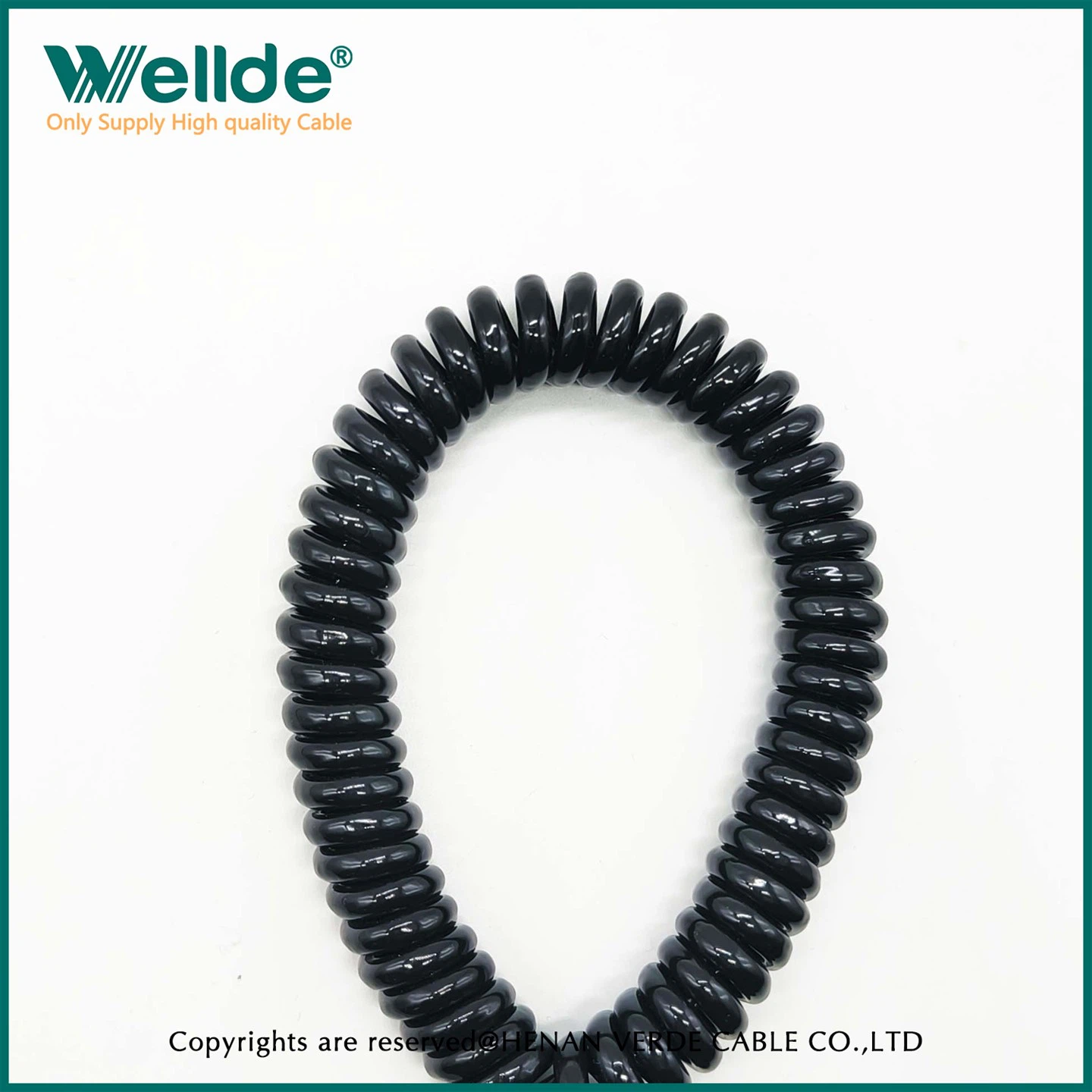

5 core kauv cable
Cov ntaub ntawv: (unit: mm)
L (ntev lub mos txwv): 130 ± 10
L1 (tail): 140 ± 10
L2 (tail): 140 ± 10
D1 (sab hauv kab ntawm lub caij nplooj ntoos hlav noj mov): ± 1
D (txoj kab uas hla ntawm lub caij nplooj ntoos hlav): 30 士 1
Spring Wire qauv: oxygen-dawb tooj liab hlau
Cov khoom siv rwb thaiv tsev: PVC
Kauv cable core naj npawb: 5 cores
Coiled cable sab nraud txoj kab uas hla: 6A ± 0.1
Cov khoom siv tiv thaiv lub hnab: PU ntuj ci
Cov yam ntxwv ua haujlwm
1. DC tsis kam: 20 degree, 0.4mm tooj liab hlau, tsawg dua los yog sib npaug rau 148Ω/km, 0.5mm tooj liab hlau, tsawg dua los yog sib npaug rau 95Ω/km.
2. Rwb thaiv tsev hluav taws xob lub zog: 1min 1kv ntawm cov neeg xyuas pib yam tsis muaj kev puas tsuaj, 1min 3kv ntawm tus neeg xyuas pib thiab cov ntaub thaiv npog tsis muaj kev puas tsuaj
3. Rwb thaiv tsev tsis kam: Txhua tus tub ntxhais hlau yog grounded nrog rau qhov seem ntawm cov tub ntxhais xov hlau, nrog rau kev tswj cables siab tshaj 10000MΩ.km thiab HYAT cables siab tshaj 3000MΩ.km.
4. Kev ua haujlwm capacitance: nruab nrab tus nqi 52 ± 2nF / km
5. Kev tiv thaiv tej thaj chaw deb crosstalk: Lub zog nruab nrab ntawm kev sib xyaw ua ke yog ntau dua 69dB / km ntawm 150kHZ.
Xa mus rau daim duab (yuav ua raws li tus qauv tiag)
Produt video
Cov duab khoom
FAQ
Q1: Kuv puas tuaj yeem tau txais cov qauv dawb?
A1: Peb tuaj yeem muab cov khoom uas twb muaj lawm coj mus kuaj dawb hauv cov khoom thauj. Yog tias muaj qee qhov kev xav tau tshwj xeeb, thov hu rau peb kom paub meej ntxiv.
Q2: Koj txoj kev ntim khoom yog dab tsi? Kuv puas tuaj yeem muaj lub pob customized?
A2: Peb muaj cov txheej txheem export pob. Yog xav paub ntxiv txog lub pob customized, thov hu rau peb.
Q3: Koj puas yog lub Hoobkas lossis tuam txhab lag luam?
A3: Peb yog lub Hoobkas. Peb muab txhua yam OEM / ODM kev pabcuam rau cov neeg siv khoom thoob ntiaj teb.
Cim npe nrov: 5 tub ntxhais kauv cable, Suav teb, lwm tus neeg, manufacturers, hoobkas, lag luam wholesale, nqe, Tshuag, nqe sau, ua nyob rau hauv Suav teb
