1.product piav qhia
H03RNF, H05RNF, H07RNF Rubber cables
Siv rau nruab nrab thiab hnyav mechanical loads, nyob rau hauv qhuav thiab ntub chaw, thiab sab nraum zoov. Nws tuaj yeem ntsia tau rau hauv qab lossis ntawm plaster, hauv pob zeb, pob zeb, tab sis tsis yog hauv cov pob zeb ua ntej.
Cable haum rau kev txhim kho kev lag luam thiab kev teeb tsa hauv tsev, rau kev khiav hauj lwm uas muaj hluav taws kub los yog tawg, rau cov neeg siv hluav taws xob txawb, cov cuab yeej siv tshuab thiab cov tshuab ua liaj ua teb, rau cov chaw tsim kho ntawm nruab nrab cov khoom siv thauj khoom, rau cov kav dej loj, cov phaj cua sov, tes teeb, cov cuab yeej hluav taws xob. xws li xyaum, ncig saws thiab cov cuab yeej hluav taws xob siv hauv tsev, tib yam li rau lub tshuab hluav taws xob lossis cov tshuab ntawm cov chaw tsim kho thiab cov neeg siv khoom siv tes ua xws li cov nroj tsuag ua liaj ua teb. Tso cai tsau tso rau ntawm crane thiab tshuab hais thiab lwm yam. Tso cai voltages mus txog 1000 V AC ntawm kev tiv thaiv nteg nyob rau hauv cov hlab los yog pab kiag li lawm, thiab raws li txuas rotor cable rau cav. Kuj tseem tsim nyog rau kev teeb tsa cua txias. Resistant rau roj, ozone thiab UV irradiation
2.cov ntaub ntawv khoom
| Tus neeg xyuas pib Nominal Section (mm2) | Cov tub ntxhais conductive | Thickness ntawm Section Sheath (mm) | Qhov nruab nrab sab nraud (mm2) | 20oC Conductor Resistance Tsawg dua lossis sib npaug (Ω / km) | Qhov hnyav (kg / km) | ||
| Tus lej / Txoj kab uas hla ntawm Core (mm) | Min | Max | YH | YHF | |||
| 10 | 322/0.20 | 1.8 | 7.5 | 9.7 | 1.91 | 146 | 153.51 |
| 16 | 513/0.20 | 2 | 9.2 | 11.5 | 1.16 | 218.9 | 230.44 |
| 25 | 798/0.20 | 2 | 10.5 | 13 | 0.758 | 316.6 | 331.15 |
| 35 | 1121/0.20 | 2 | 11.5 | 14.5 | 0.536 | 426 | 439.87 |
| 50 | 1596/0.20 | 2.2 | 13.5 | 17 | 0.379 | 592.47 | 610.55 |
| 70 | 2214/0.20 | 2.4 | 15 | 19.5 | 0.268 | 790 | 817.52 |
| 95 | 2997/0.20 | 2.6 | 17 | 22 | 0.198 | 1066.17 | 1102.97 |
| 120 | 1702/0.30 | 2.8 | 19 | 24 | 0.161 | 1348.25 | 1392.55 |
| 150 | 2135/0.30 | 3 | 21 | 27 | 0.129 | 1678.5 | 1698.72 |
| 185 | 1443/0.40 | 3.2 | 22 | 29 | 0.106 | 1983.8 | 2020.74 |

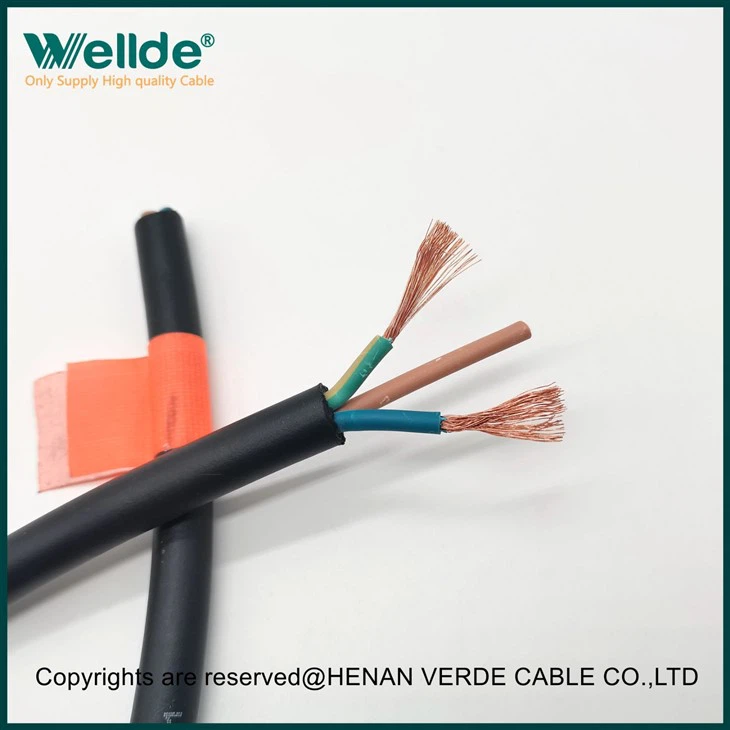

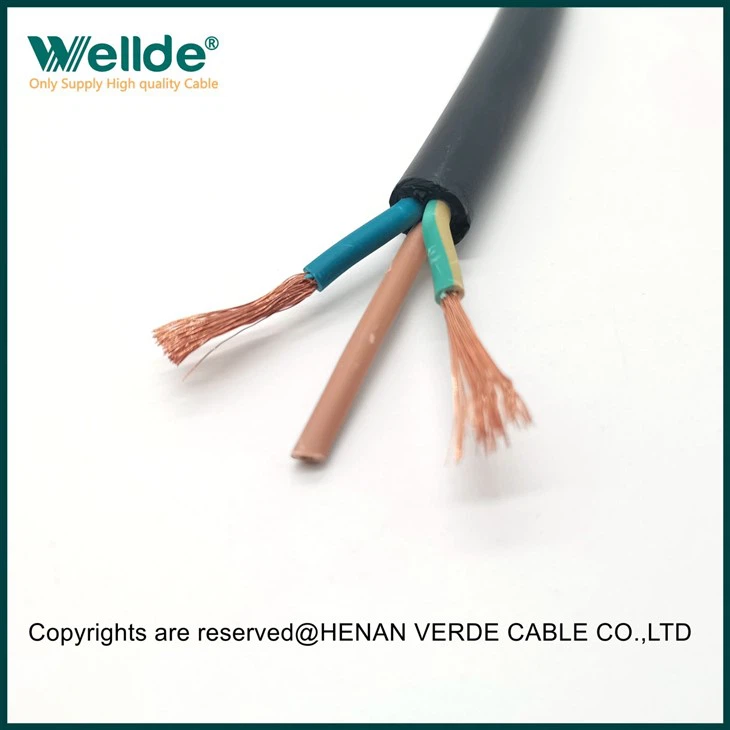

3. khoom duab
4.FAQ
Q1: Kuv puas tuaj yeem tau txais cov qauv dawb?
A1: Peb tuaj yeem muab cov khoom uas twb muaj lawm coj mus kuaj dawb hauv cov khoom thauj. Yog tias muaj qee qhov kev xav tau tshwj xeeb, thov hu rau peb kom paub meej ntxiv.
Q2: Koj txoj kev ntim khoom yog dab tsi? Kuv puas tuaj yeem muaj lub pob customized?
A2: Peb muaj cov txheej txheem export pob. Yog xav paub ntxiv txog lub pob customized, thov hu rau peb.
Q3: Koj puas yog lub Hoobkas lossis tuam txhab lag luam?
A3: Peb yog lub Hoobkas. Peb muab txhua yam OEM / ODM kev pabcuam rau cov neeg siv khoom thoob ntiaj teb.
